NWBView

Description

NWBView is a cross-platform software with a graphical user interface to display the contents of the binary NWB file format. It is written in Rust for high-performance, memory safety and ease of deployment.

Features include:

  • Display contents of NWB files in a tree structure
  • Interactive plots for voltage and current recordings data
  • Scalable window display for tabular and text data
  • Built with egui Rust GUI library for rendering

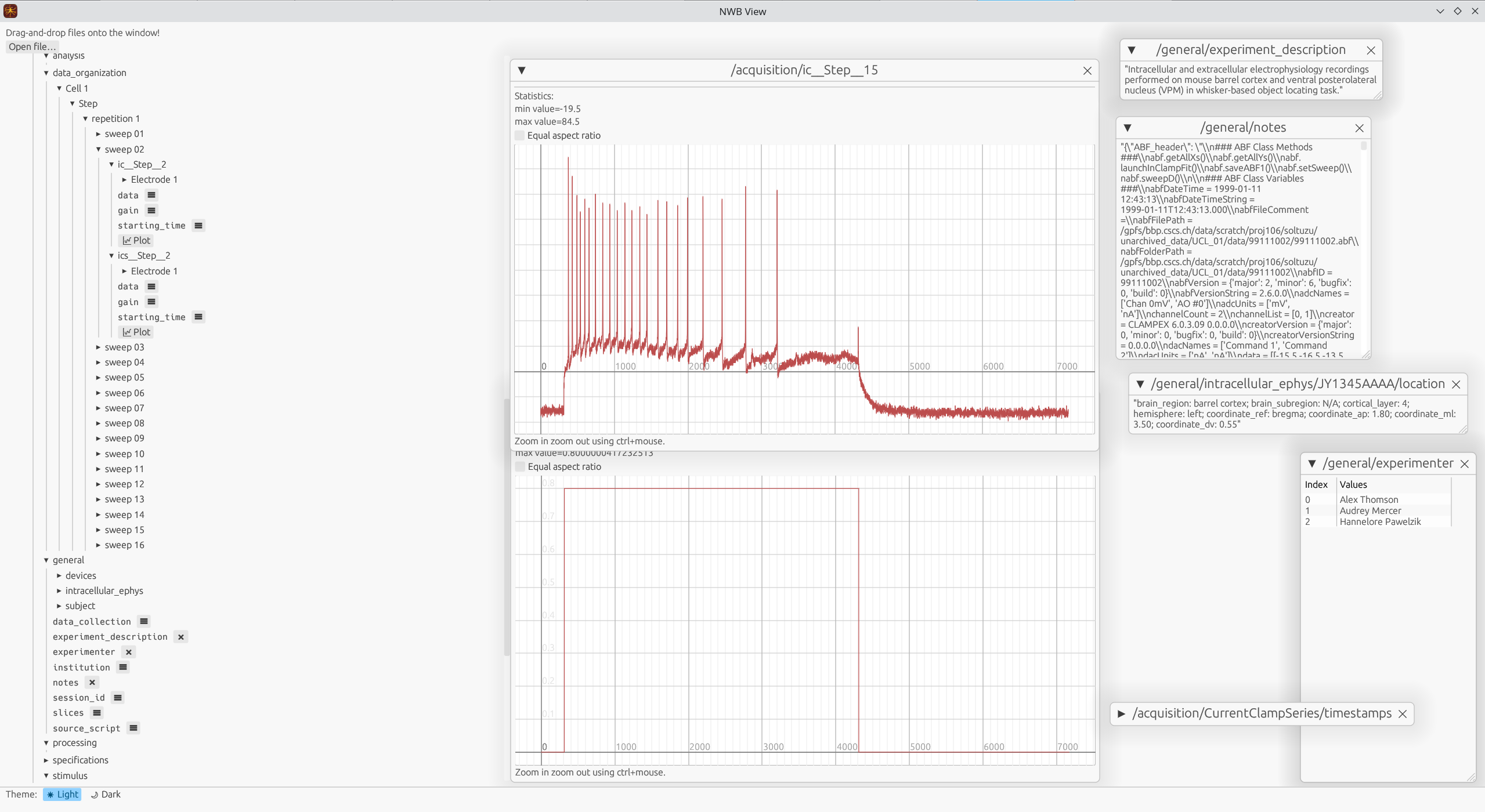

NWBView Screenshot

The screenshot above shows the NWBView GUI. The left panel shows the contents of the NWB file in a tree structure. The right panel shows the details of the selected item, which can be a plot, a table or a text.

Installation

Using Cargo

Cargo is the package manager for Rust, and NWBView is listed as a package there. You can find it on crates.io.

Note: HDF5 needs to be installed in your system as cargo will try to locate the HDF5 root directory and/or headers.

  1. Install the cargo package manager
  2. Run:
cargo install nwbview
  1. Launch NWBView:
nwbview

Building from Source

The Rust library dependencies are provided in the cargo.toml file.

System dependencies (package names may differ between systems):

  • libgtk-3-dev
  • librust-atk-dev
  • libhdf5-serial-dev

Once all dependencies are satisfied:

cargo run --release

The release flag builds the artifacts with optimizations. Do not specify it when you need to debug.
